How to Adjust Supports on a Screen or Grit unit

How to Adjust Supports on a Screen or Grit unit

If you find you have interference between the outlet of a screen and the support of the screen.

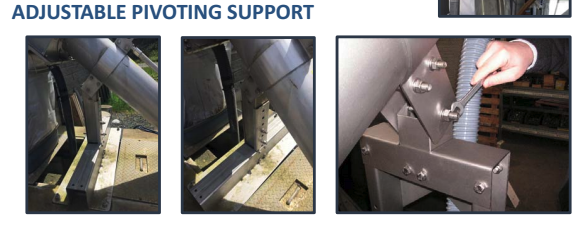

The support of the screen bolted to the transport zone of the screen and is both adjustable in height and position as it is bolted throat of the transport.

Note: we can also change the dischargee to the side of the screening tank
