PERIODICAL CHECKS

END OF EACH WORKING SESSION

·      Check that there is no leakage of oil from the gearbox and there is no drip

·      Check the integrity of security systems and protection

WEEKLY

·      Check if the outlet is free from residues of material, if it is not, clean to avoid any obstruction to the passage of material.

MONTHLY

• Check the tightness of bolts
• Check the motor cooling fan
• Check the oil level

EVERY SIX (6) MONTHS

• Check the wear of the screw
• Check the bolt tightness
• Check the wear of the sliding bars

  REGULAR MAINTENANCE

Poor maintenance causes early wear and higher probability of failure or breakage.

All transactions described below, although not expressly stated, should end with the repositioning and tightening of all the body’s connection and attachment.

Warning!

BEFORE ANY OPERATION DISCONNECT THE POWER SUPPLY!

 REPLACEMENT OF THE SLIDE BARS

• - Disconnect motor from main supply

• - Remove the covers
• - Wash the machine with plenty of water

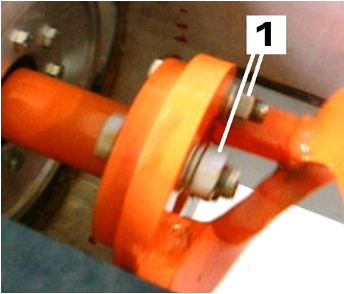

• - Unscrew the bolts (1) of the screw flange
• - Extract screw from trough

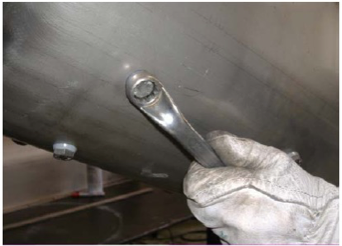

• - Remove the bolts that block the slide bars
• Pull out the slide bars
• Put on the new bars and tight the bolt Note: remember to replace also the bolt’s gasket to ensure the correct sealing
• Follow the reverse sequence to mount the screw


REPLACEMENT OF THE SCREW

• Disconnect motor from main supply
• Empty the machine and remove the covers
• Wash the machine with plenty of water before any operation
• Unscrew the bolts (1) of the screw flange

• Extract screw from trough
• Put on the new screw
• Fasten the bolts
• Put on the covers
