How to Replace Spiral on Sedigrit
Replacement of Sedigrit Screw
- Empty the machine by running on screw on manual and opening the drain at bottom of unit.
- Disconnect motor from main supply
- Remove the covers; To follow the correct order of cover removal see the images below.

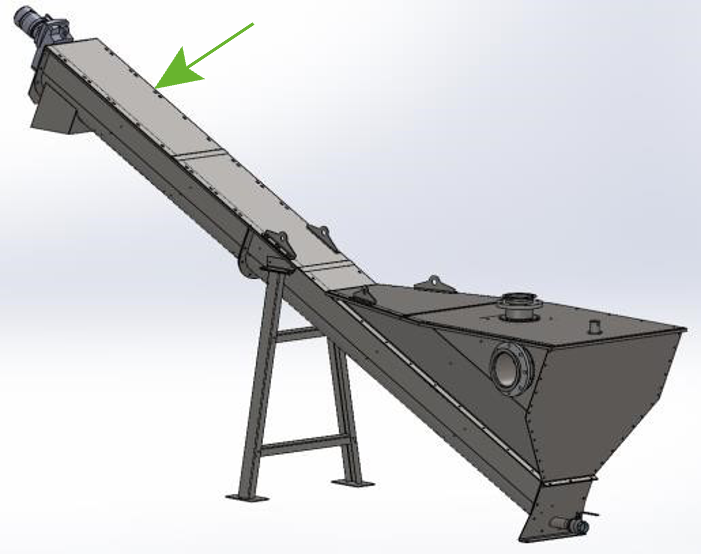

1.REMOVE COVERS NEAREST TO SCREW | 2.REMOVE NEXT COVER |

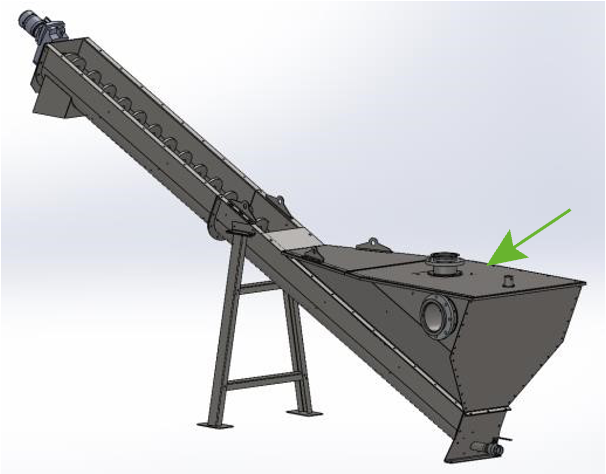

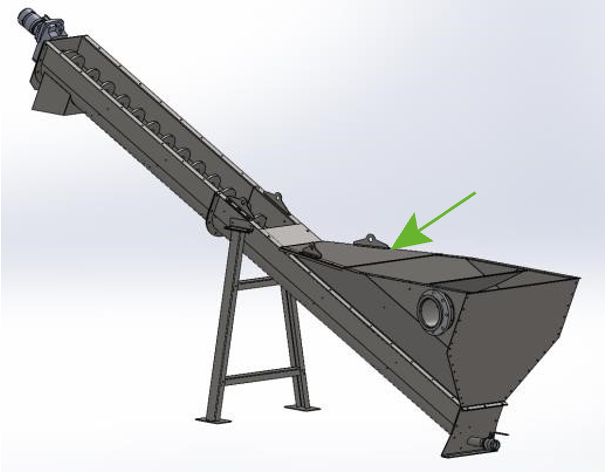

| 3. Disconnect Inlet Pipe and remove cover | 4. Remove next cover |

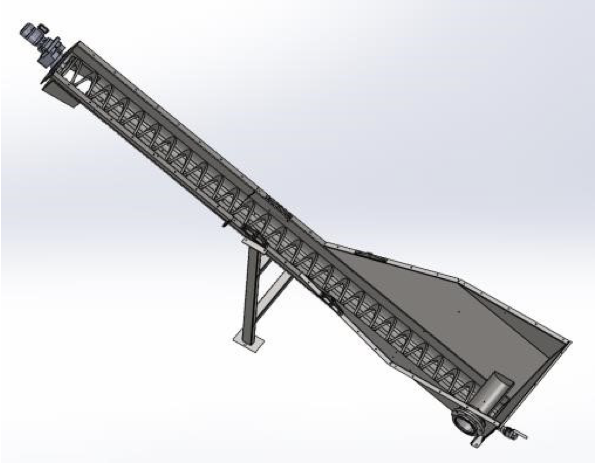

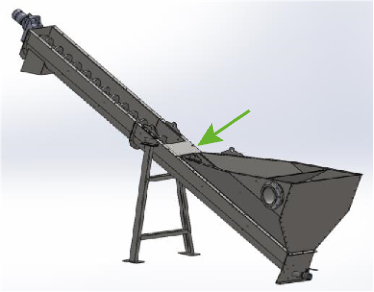

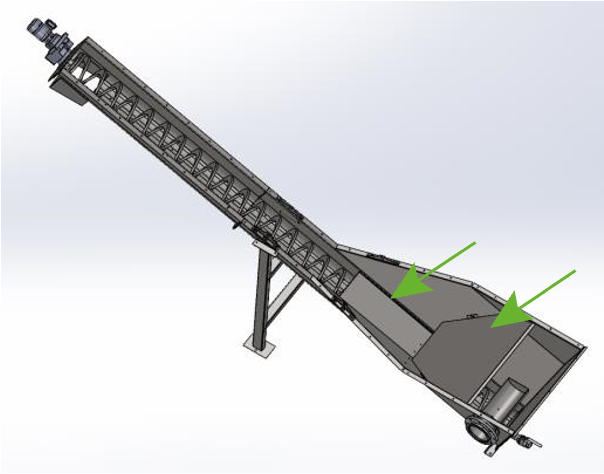

5. Remove Small Cover | Remove the Velocity reducing baffle and the cover plate. |

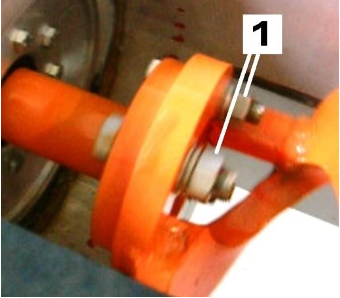

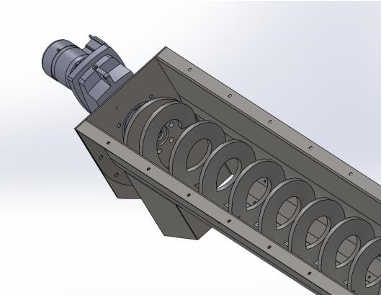

The Screw is now fully accessible for replacement from top | Wash the machine with plenty of water before any operation - Unscrew the bolts (1) of the screw flange: |
- Extract screw from trough - Put on the new screw - Fasten the bolts - Put on the covers | |
